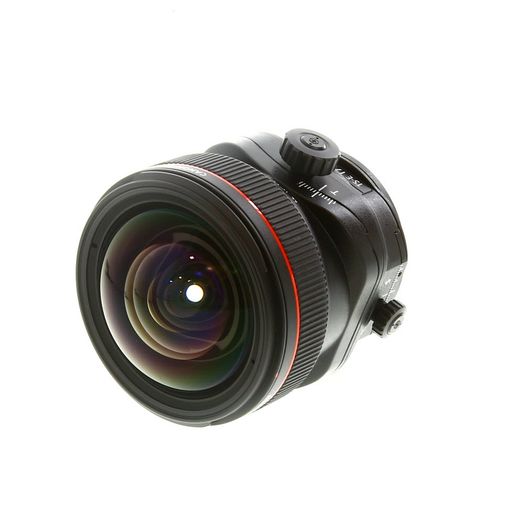

Canon 17mm f/4 L TS-E Rotatable Axis Manual Focus EF-Mount Lens

Canon's widest tilt-shift lens: 17mm perspective control at f/4.

At 17mm, this is the widest tilt-shift lens Canon makes for the EF mount, and the 104° diagonal angle of view puts it in different territory than the 24mm and 45mm TS-E options. Architects and real estate photographers get the room coverage they need without stitching, and the shift function keeps vertical lines straight where a rectilinear wide-angle alone cannot. The tilt range of ±6.5° handles both Scheimpflug focus plane work and selective-focus effects, and the TS revolving mechanism lets you combine tilt and shift in any direction within ±90° without removing the lens.

The optical construction runs 18 elements in 12 groups, with UD glass controlling chromatic aberration and aspherical elements treated with Super Spectra coatings to cut ghosting and flare at the extreme wide end where both tend to be worst. Minimum focus distance is 0.25m, which gives macro-adjacent working distances when you want the tilt to pull a near subject into focus across a wide plane. The metal barrel and mount are solid without being over-engineered, though at 820g the lens is substantial and benefits from a tripod setup for shift work. There is no filter thread, so gel filters or specialty solutions are needed if filtration matters to your workflow.

For EF shooters this is a native fit. With an adapter it works on Canon RF, Sony E, Nikon Z, Fuji X, and L-Mount bodies, giving mirrorless users access to a proven tilt-shift focal length that has no direct equivalent in most native mirrorless lineups.

Who It's For

Architectural photographers working interiors or facades will get the most from the 17mm field of view paired with shift to correct converging lines that no software correction can fully recover. Landscape photographers who want a sharp focus plane angled to match a receding foreground can use the tilt to control depth without stopping down to f/16 or f/22. Fine art and product photographers benefit from the 0.25m minimum focus distance combined with tilt for precise plane-of-focus placement on a flat subject. Mirrorless shooters on Sony E or Nikon Z who need tilt-shift capability can run this adapted without losing optical quality.

Key Features

• Canon EF mount, full-frame tilt-shift lens
• 17mm focal length with 104° diagonal angle of view
• f/4 to f/22 aperture range, manual focus only
• ±6.5° tilt range for Scheimpflug focus plane and selective depth effects
• TS revolving mechanism allows tilt and shift combined within ±90°
• 18-element optical design with UD glass and Super Spectra coatings
• 0.25m minimum focus distance with 0.14x maximum magnification
• 820g weight, metal barrel and mount, no weather sealing

FAQ

What makes the 17mm TS-E different from Canon's 24mm and 45mm tilt-shift lenses?

The 17mm gives you 104° diagonal coverage without cropping or stitching, making it the widest tilt-shift option Canon offers for EF mount. That extra width is built for architectural and real estate work where you need to capture entire rooms or building facades while keeping vertical lines straight.

Can I use tilt and shift at the same time?

Yes. The TS revolving mechanism lets you combine tilt and shift in any direction within ±90° without removing the lens, so you can correct perspective and manage focus plane simultaneously.

How does the tilt function work for focus control?

The tilt range of ±6.5° aligns the focus plane to match the Scheimpflug principle, keeping a plane of sharp focus that runs through your subject at an angle. You can use this for selective-focus effects or to hold sharp focus across an entire architectural plane.

Will this lens autofocus?

No, it's manual focus only. Tilt-shift lenses require precise focusing control tied to your shift and tilt adjustments, so autofocus doesn't apply here.

What's the minimum focus distance, and does it matter for the tilt effect?

Minimum focus is 0.25m (about 10 inches), which is close enough that tilting lets you pull a nearby subject into focus across a wide plane. This bridges macro and architectural work in a way rectilinear wide-angles cannot.

Can I use this on mirrorless cameras?

Yes, with an EF-to-mirrorless adapter. It works on Canon RF, Sony E, Nikon Z, Fuji X, and L-Mount bodies, though you'll be adapting native EF glass rather than using a purpose-built mirrorless option.

Do I need filters for this lens?

There's no filter thread on the barrel. If you need ND or polarizing filters, you'll have to use gels, drop-in systems, or matte box solutions.
