Toyo 4X5 45 CX View Camera Body

***Lens not included
KEH Model# 254396

This product is currently out of stock.

Do you want to be notified?

We’ll Email you when product is in stock

Do You Have One To sell?

Sell Your Gear To KEH and Get Cash

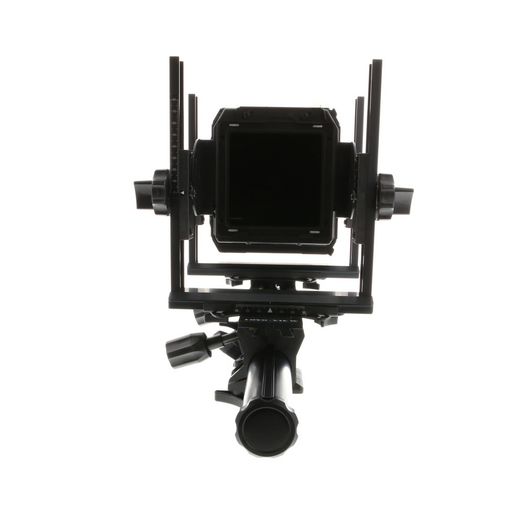

* Item pictured for illustrative purposes only, actual item not pictured.

Customers Also Bought

Toyo 4X5 45 CX View Camera Body Description

Details

Toyo-View 45CX View Camera - 4" x 5"

Versatile, economical, full-movement view camera for studio, location and field. Compact frame and tapered bellows design. Rugged and light alloy and polycarbonate construction. Compact, portable design Rear Dual Axis Spirit Level, Rigid Interchangeable 450mm (39mm diameter) monorail with alignment guide.

KEH Specifications

  • Tilts: Front and Rear 45°
  • Swings: Front and Rear 30°
  • Rise and Fall/Combined:  80mm
  • Lateral Shift: Front 30mm; Rear 45mm
  • Camera Back:  Reversible Vertical/Horizontal Graflok Type Accepts all 4x5 cut film holders, Kodak Readyload®, Polaroid® 4x5, and all roll film holders - 6x7cm, 6x9cm, 6x12cm with Graflock fitting.
  • Focusing Screen: Fresnel
  • Interchangeable bellows:   Yes
  • Maximum Extension: 445mm
  • Lensboard:  Toyo or miscellaneous 158x158mm standard or recessed
  • Weight:  7.9 lbs

Specifications

General information

Brand Name Toyo Optics
Manufacturer Part Number 180-109
Product information
Additional Information
  • Reversible Graflok type back accepts all 4x5 cutfilm holders, Kodak Readyload and Polaroid 4x5, as well as 6x7 and 6x9 rollfilm holders
  • Rear standard features a dual axis spirit level
  • Compact frame and tapered bellows design
Product Model
45CX
Interchangeable Bellows
Yes
Minimum Extension
3.15"
Maximum Extension
17.52"
Tilt
45° + 45° Front - 45° + 45° Rear
Swing
30° + 30° Front - 30° + 30° Rear
Rise
3.15" Front - 3.15" Rear
Shift
1.18" + 1.18" Front - 1.77" + 1.77" Rear
Camera Back
Reversible
Lens Board Supported
4.33" x 4.33"
